Product Interchange To T.B. Woods Variable Speed Pulley - Variable Speed sheaves
This Mechanical Variable Speed sheave is an interchange to T. B. Woods of USA. These pulleys are manufactured in steel castings with multiple non-metallic keys, which transmits torque from Hub to Disc. It has rugged construction and clamp-up Hub design for bigger sizes. As the pulleys are supplied with finish bore and keyway, they are ready to fit module. These pulleys are Dynamically balanced for vibration less running and lifetime lubricated. The speed variation ratio is 1 : 3
This Variable Speed Pulley Drive Consists of pair of pulleys & belt.
- driveR (motor) pulley, with speed adjustment device.
- driveN Pulley- spring loaded pulley.
This drive is an interchange to Miky Pulley (JAPAN). These Pulleys are manufactured from steel castings and can be installed without any modification on your machines. As the pulleys are supplied with finish bore and keyway, they are ready to fit module. These pulleys are Dynamically balanced and life time lubricated.
Selection Table
| Model |
H. P. 1440 RPM |

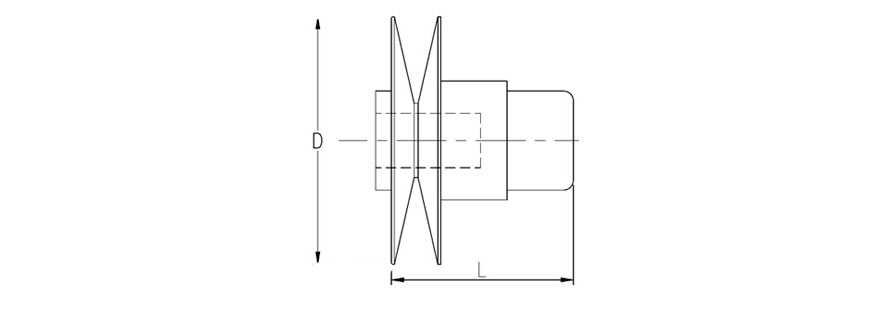

Belt | Bore Diameter in inches | Bore Diameter in MM | Pulley D |
Pulley L |
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| DD 97 F | 5 to 7.5 | 2926V or 47 x 13 | 1 | 1-1/8 | 1-1/4 | 1-3/8 | 28 | 38 |
|
10" | 7 - 15/16" |
| DD 97 V | 5 to 10 | 2926V or 47 x 13 | 1 | 1-1/8 | 1-1/4 | 1-3/8 | 28 | 38 |
|
||
| DD 127 F | 7.5 to 15 | 4430V or 70 x 18 | 1-3/8 | 1-5/8 | 1-7/8 | - | 38 | 42 | 48 | 13" | 9 - 3/16" |
| DD 127 V | 15 to 25 | 4430V or 70 x 18 | 1-3/8 | 1-5/8 | 1-7/8 | - | 38 | 42 | 48 | ||
Caution - Change the speed in Running condition only
Specifications are subject to change without notice
