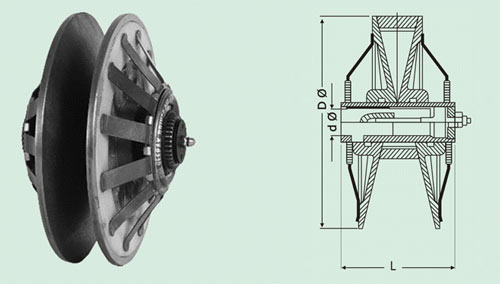

Product Interchange to Lenze Type Pulley - 11.100 / 11.101 & 11.213
Product Interchange to Lenze type 11.100 & 11.101
| Lenze Code | Deepak Size | BoreŲ | PulleyŲ | Pulley Length | Belt Width & Thickness | Weight in Kgs. |
|---|---|---|---|---|---|---|
| Keyway | ||||||
| 11.100.05.1.1 | 12014 | 14 (5 x 2) | 120 | 72 | 22 x 8 | 1 |
| 11.100.10.1.1 | 15519 | 19 (6 x 2.8) | 155 | 95 | 28 x 8 | 2.4 |
| 11.101.20.1.1 | 18524 | 24 (8 x 3.3) | 185 | 110 | 37 x 10 | 3.5 |
| 11.101.30.1.1 | 22528 | 28 (8 x 3.3) | 225 | 130 | 47 x 13 | 6.5 |
| 11.101.40.1.1 11.101.45.1.1 | 27028 | *28 (8 x 3.3) | 270 | 148 | 47 x 13 | 11 |
| 11.101.55.1.1 | 31038 | 38 (10 x 3.3) | 310 | 180 | 55 x 16 | 19 |
| 11.101.65.1.1 | 36042 | 42 (12 x 3.3) | 360 | 215 | 70 x 18 | 25 |
| 11.101.80.1.1 | 37548 | 48 (14 x 3.8) | 375 | 215 | 70 x 18 | 33 |
Product Interchange to Lenze type 11.213
| Lenze Type | Deepak Size | Disc Ų | Pulley Length | Bore Ų | Belt Width & Thickness | |
|---|---|---|---|---|---|---|
| Min | Max | |||||
| 11.213.13 | FC 130 | 130 | 95 | 14 | 19 | 22 x 6 |
| 11.213.16 | FC 160 | 160 | 110 | 18 | 24 | 28 x 8 |
| 11.213.20 | FC 205 | 205 | 130 | 19 | 28 | 37 x 10 |
| 11.213.25 | FC 252 | 252 | 160 | 25 | 42 | 47 x 13 |
| 11.213.31 | FC 315 | 315 | 196 | 38 | 42 | 55 x 16 |
Manufacturer and Exporter of Mechanical Variable Speed Pulley Drives, Stepless Variable Speed Belt Drives, Variable Speed Belts, Variable Speed Drive for flameproof / explosive areas. We also design & manufacture custom built drives & pulleys as per customer's requirements, Adjustable Center Variable Speed Pulley Drives interchange to Lenze, Fixed Center Variable Speed Pulley Drives (FC Series) - Interchange to Lenze, Asymmetric Variable Speed Belt Drives Interchange to BECKER / BERGES, Adjustable Center Variable Speed Pulley Drives With Diaphragm Springs, Adjustable Motor Slide Base, Adjustable Center Variable Speed Drive For Standard 'V' Belts, Variable Speed Fixed Center Drive For Standard 'V' Section Belts, Variable Speed Pulley for Heidelberg Printing Machine, T.B. Woods Variable Speed Pulley, Berges Type RF b & Fsb, Variable Speed Pulley Drive for Tablet Compression Machine, Variable Speed Pulley drives for GTO / MO Printing machines, Variable Speed Pulley for MBO & Stahl Folding Machines, Mechanical Variator For AMADA Bandsaw Machine Interchange to MIKI, PIV Mechanical Variable speed gear box, PIV Mechanical Variable Speed Drive
