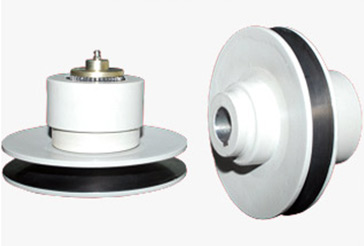

Adjustable Center Variable Speed Drive For Standard V Belts
This pulley is manufactured from cast-iron & suitable For standard 'V' Belt,with unique revolutionary serration design for torque transmission. The speed variation ratio is 1 :2. This drive is ideal For all types of applications, suitable for dusty environment, copact size and echonomical cost. The Speed Variation is achieved by changing the centre distance between driveR & driveN Shafts by means of adjustable motor base.
Features
- Revolutionary Serration design for torque transmission
- Rugged cast iron construction
- Proven reliability.
- Input 0.55 to 3.7 kw
- Compact design
- Finished bore With key way
- Economical cost
- ldeal for all applications
- Suitable for dusty environment
- Dynamically Balanced
Selection Table
| Motor Power |
Variable Speed Pulley SIZE | Speed Range R. P. M | Belt Size | Dimensions | |||||
|---|---|---|---|---|---|---|---|---|---|

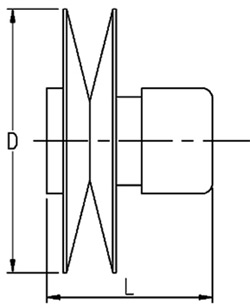

| KW | RPM | 300-600 | 500-1000 | 7500-1500 | D | L | Bore / Keyway | ||
| DriveN Pulley Pitch Diameter | |||||||||
| 0.55 & 0.75 | 1400 | A 12019 | 260 | 160 | 100 | A (13 x 8) | 120 | 80 | Ų 19-6 x 2.8 |
| 1.1 & 1.5 | 1410 | B 14024 | 315 | 190 | 125 | B (17 x 11) | 140 | 95 | Ų 24-8 x 3.3 |
| 2.2 & 3.7 | 1425 | C 15528 | 350 | 210 | 140 | C (22 x 14) | 155 | 110 | Ų 28-8 x 3.3 |
