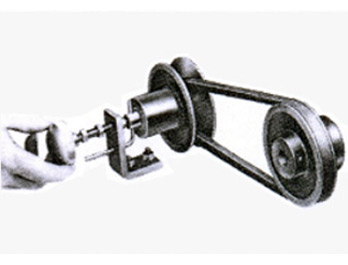

Variable Speed Fixed Center Drive For Standard V Section Belts - 0.37 to 1.5 Kw

Adjustable Center Variable Speed Pulley Drives

Theses drives are manufactured for Standard 'B' section 'V' Belts for O.E. applications, suitable up to 2 HP Power rating. The speed variation ratio is 1: 6

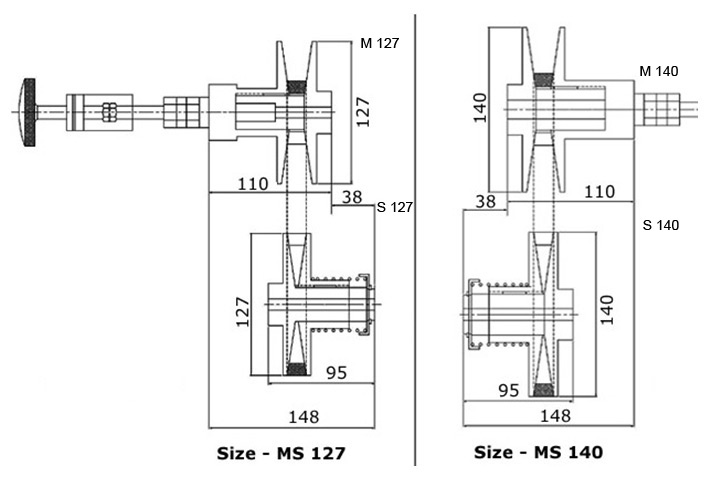

Selection Table

Size Power KW Motor RPM Output Speed Range Pulley Diameter Bore Max. Belt Section
      Min.   Max
M 127 S 127 0.37 to 0.75 1440 570 3500 127 19 'B' 17 x 11
M 140 S 140 1.1 to 1.5 1440 570 3500 140 24 'B' 17 x 11

Caution - Change the speed in Running condition only
